SP560

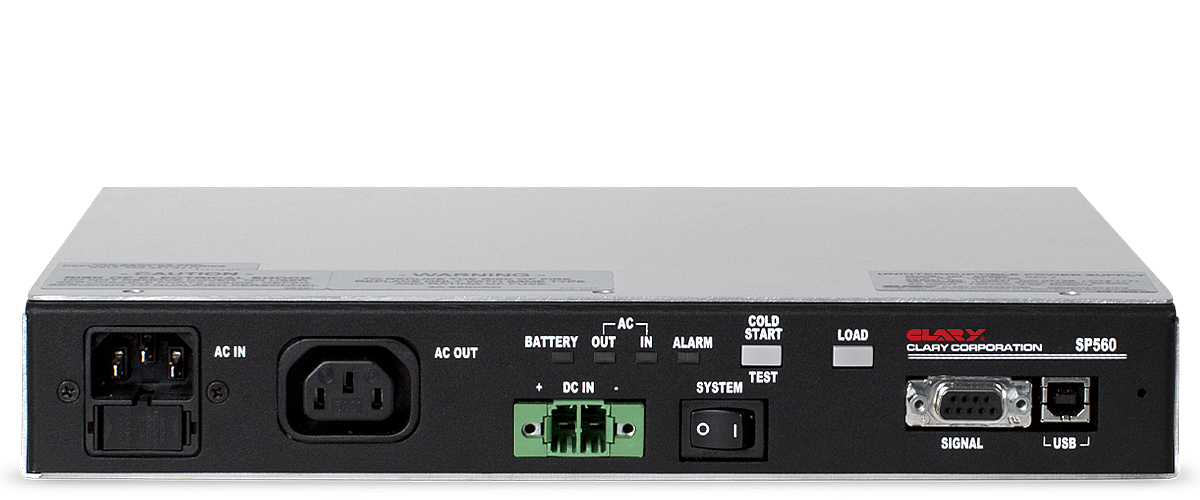

The compact SP 560 from Clary delivers on-line protection 100% of the time, for reliable, continuous error-free operation, regardless of utility power quality.

Compact UPS that Delivers Uncompromising Protection

Occupying only 1U of vertical rack space, it can fit into any cabinet. Clary’s SP 560 is a 560 VA / 400 W power source built for electronics equipment in IT, traffic and security applications, delivering constant, conditioned, regenerated AC power. It protects equipment from being disrupted, degraded or damaged due to harmful power events. Clary power conditioning completely isolates the cabinet from utility power enabling error-free operation during surges, sags, spikes, and other power anomalies.

PRODUCT SPECIFICATIONS

  • Voltage
    120 VAC (85 VAC to 155 VAC before going to battery, when configured with batteries)

    Frequency
    40 Hz to 70 Hz

  • Voltage
    120 VAC ±3%

    Frequency
    Software selectable to sync with input utility or run at crystal controlled 50/60 Hz ±1 Hz

    Current
    4.8 A

    Rating
    560 VA / 400 W

    Crest Factor Ratio
    50% load up to 4.8:1, 75% load up to 3.2:1, 100% load up to 2.4:1

    THD
    3.00%

    Dynamic Response
    ±4% for 100% step load change 0.5 ms recovery time

    Overload
    110% for 10 sec; 200% for 50 ms

    UPS Protection
    Input and output short circuit, Input and output overload, Excessive battery discharge

  • Temperature
    -40°C to +74°C (-40°F to +165°F)

    Humidity
    0% to 95% non-condensing

    Altitude
    Sea level to 10,000 ft

  • Input
    IEC-320, C14 male connector

    Outputs
    IEC-320, C13 female receptacles (2)

    Dimensions
    H x W x D (in)1.7 x 11.0 x 8.5 (1U)

    Weight (lb)
    5

    Cooling
    Low velocity, Forced air

  • Standard Features
    Power factor corrected input, Fully regenerative, True on-line continuous power, Low distortion sine wave output, Designed for non-linear loads, Extended brownout protection

    Certifications
    FCC Class A, IEEE 587/ANSI C62.4, IEC 555@ 120 VA, NEMA

    Typical Recharge Time
    (to 85% Capacity @ 100% Load)
    3 to 5 hrs with SP 485B battery pack, 48 to 72 hrs with Outpost or Garrison batteries

  • Visual Indicators
    Battery status, AC output, AC input, Alarm

    Switches / Control Panel
    System power, Cold start, Load I

    Audible Alarms
    Utility interrupt, Inverter failure, Overload, Low battery

    Intelligent Computer Interfaces
    1 each DB9-F (RS232 and signal interface pins) and 1 each USB

  • External Battery Pack
    SP 48SB battery pack. Compact design. Ideal for runtime requirements less than an hour.
