SP2000LX

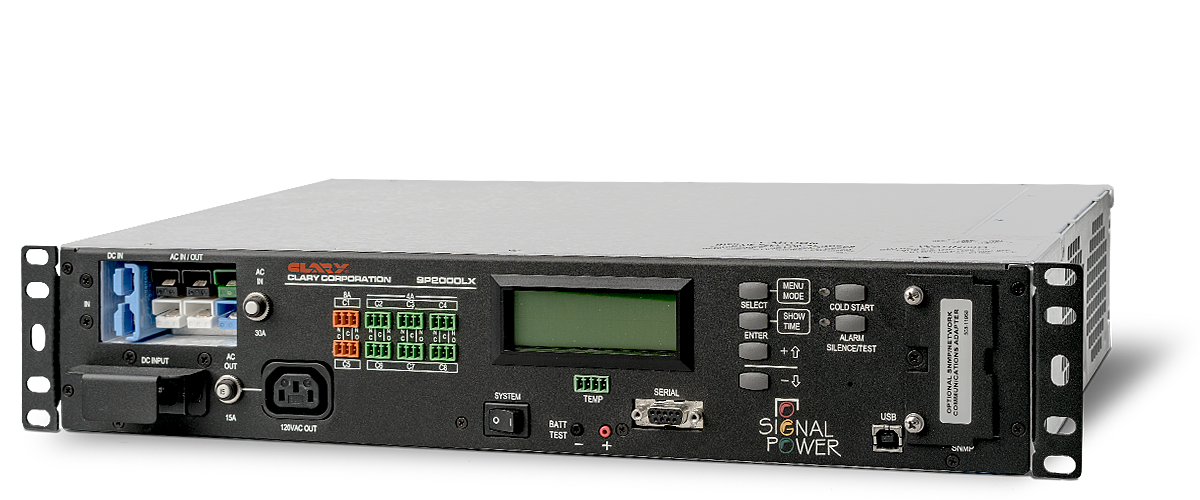

The SP 2000LX features an integrated Power Interface Module and programmable display.

Ideal Power Protection for Large Diamond Intersections

The LX Series are advanced UPS that provide clean, regulated dual conversion power for controllers and other sensitive equipment inside the traffic cabinet. Rated for 2000 VA / 1400 W, with operational temperature of -40°C to +74°C (-40°F to 165°F), the SP 2000LX has been independently tested and certified to comply with NEMA temperature standards as well as NEMA standards for shock and vibration.

PRODUCT SPECIFICATIONS

  • Voltage
    75 VAC to 155 VAC (before going to batteries)

    Frequency
    45 Hz to 65 Hz

  • Voltage
    120 VAC ±3%

    Frequency
    50 Hz or 60 Hz

    Current
    16.7 A

    Rating
    2000 VA / 1400 W

    Crest Factor Ratio
    50% load up to 4.8:1, 75% load up to 3.2:1, 100% load up to 2.4:1

    THD
    4.00% maximum

    Dynamic Response
    ±4% for 100% step load change 0.5 ms recovery time

    Overload
    110% for 10 sec; 200% for 50 ms

    UPS Protection
    Input and output short circuit, Input and output overload, Excessive battery discharge

  • Temperature
    -40°C to +74°C (-40°F to +165°F)

    Humidity
    0% to 95% non-condensing

    Altitude
    Sea level to 10,000 ft

  • Input
    Hardwired to bypass box

    Outputs
    Hardwired to bypass box, with single 15 Amp receptacle

    Dimensions
    H x W x D (in)3.5 x 19.0 x 10.0 (2U)

    Weight (lb)
    13

    Cooling
    Low velocity, Forced air

  • Standard Features
    Power factor corrected input, Fully regenerative, True on-line continuous power, Low distortion sine wave output, Designed for non-linear loads, Extended brownout protection, EIA/RS232 data interface, 96 VDC battery system

    Certifications
    IEEE 587/ANSI C62.4, IEC 555 @ 120 VA, NEMA

    Typical Recharge Time
    (to 85% Capacity @ 100% Load)
    48-72 hrs (more time required with extended battery option)

  • Switches / Control Panel
    System power, Cold start, Test, Alarm silence, Four line LCD display panel

    Audible Alarms
    Utility interrupt, Inverter failure, Overload, Low battery, Self test

    Intelligent Computer Interfaces
    Serial interface for EIA 232, 1 each DB9-F (RS232 and signal interface pins) and 1 each USB, Full interactive remote computer monitoring and control of most features including load control (requires optional monitoring software), NTCIP and TCP/IP ready

    Contact Closures
    "D" connector, Open collector (see user manual for additional interface information)

  • SNMP Interface
    Allows full control and monitoring interface over network connection. Compatible with HP Openview™, IBM Netview™, CA Unicenter TNG™, and other major software offerings.

    Battery Bus Voltage
    96 V
