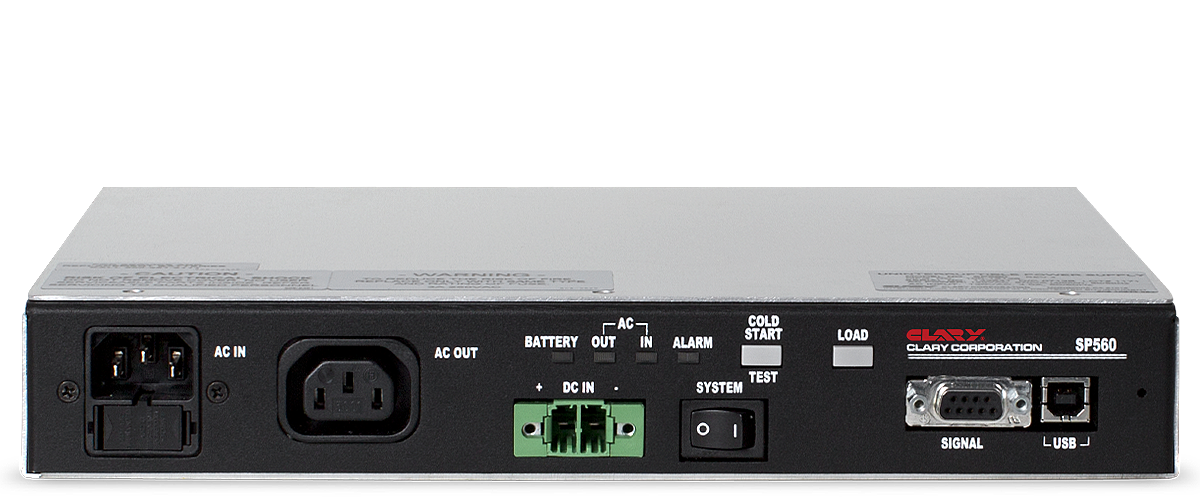

SP Series

Clary’s SP Series are the world’s most advanced Uninterruptible Power Systems (UPS), designed specifically for electronics equipment in IT, Traffic and Security applications.

The Standard for Clean Continuous Power and Protection

Industry proven, each product in the SP Series delivers on-line double-conversion protection 100% of the time for reliable, continuous, and error-free operation regardless of utility power quality. Listed by many states as the preferred UPS system for traffic intersection back-up, Clary products are the only products engineered to meet NEMA standards for traffic back-up systems with an operational temperature range of -40°C to +74°C.

PRODUCT SPECIFICATIONS

  • Voltage
    120 VAC +12%, -25% (without battery discharge)

    Frequency
    48 Hz to 62 Hz

  • Voltage
    120 VAC ±3%

    Frequency
    50 Hz or 60 Hz

    Current
    10.4A

    Rating
    1250 VA / 875 W

    Crest Factor Ratio
    50% load up to 4.8:1, 75% load up to 3.2:1, 100% load up to 2.4:1

    THD
    4.00% maximum

    Dynamic Response
    ±4% for 100% step load change 0.5 ms recovery time

    Overload
    110% for 10 sec; 200% for 50 ms

    UPS Protection
    Input and output short circuit, Input and output overload, Excessive battery discharge

  • Temperature
    -40°C to +74°C (-40°F to +165°F)

    Humidity
    0% to 95% non-condensing

    Altitude
    Sea level to 10,000 ft

    Noise Level
    46 dBA at 5 ft

  • Input
    Hardwired to PIM

    Outputs
    Hardwired to PIM, with single 15 Amp receptacle

    Cabinet
    NEMA, 332 or CBO-123 cabinet style configurations available, NEMA, 3R Type II and Type III optional

  • Standard Features
    Power factor corrected input, Fully regenerative, True on-line continuous power, Low distortion sine wave output, Designed for non-linear loads, Extended brownout protection, EIA/RS232 data interface

    Certifications
    FCC Class A, IEEE 587/ANSI C62.4, IEC 555@ 120 VA, NEMA

    MTBF
    Inverter: > 100,000 hrs, System with bypass: 150,000 hrs

    Typical Recharge Time
    (to 85% Capacity @ 100% Load)
    48-72 hrs (more time required with extended battery option), < 20 hrs (with optional fast battery charger)

  • Visual Indicators
    Battery level, Load level, AC in, Inverter on, Low battery, Summary alarm, Alarm silence

    Switches / Control Panel
    System power, Cold start, Test, Alarm silence, Event counter with reset, Hour meter, Battery disconnect

    Audible Alarms
    Utility interrupt, Inverter failure, Overload, Low battery, Self test

    Intelligent Computer Interfaces
    Serial interface for EIA 232, Optional NTCIP and TCP/IP via standard RJ45 connector, Full interactive remote computer monitoring and control of most features including load control (requires optional monitoring software), NTCIP and TCP/IP ready

    Contact Closures
    "D" connector, Open collector (see user manual for additional interface information)
