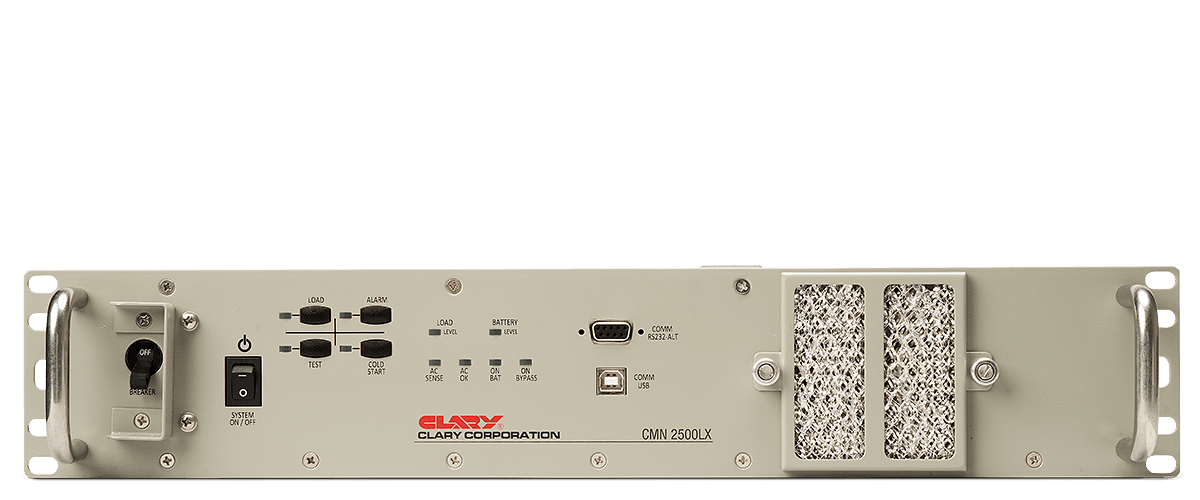

CMN LX Series

The CMN LX Series is a newly designed series of UPS systems that integrates Clary’s proven digital UPS architecture with the most current electronic components.

Customizable UPS Products for Naval Shipboard Applications

All designs share a common user experience, interchangeable and customizable elements to facilitate integration and maintenance. The CMN LX Series is highly configurable, with selectable transformer isolation and firmware. External, expandable and field-configurable battery supports NPX, VRLA, Cyclon SLA or Lithium.

PRODUCT SPECIFICATIONS

  • Voltage
    LX models 115 VAC (external transformer) / LXI models 115 or 230 VAC (internal transformer) / GXI models 115 or 230 VAC (internal transformer)

    Frequency
    60 Hz (LX, LXI) / 50 Hz or 60 Hz (GXI)

    Isolation
    External/internal transformer with bypass auto ranging (TapSelect)

  • Voltage
    LX models 115 VAC / LXI models 115 VAC / GXI models 230 VAC

    Frequency
    60 Hz

    Crest Factor Ratio
    50% load up to 4.8:1, 75% load up to 3.2:1, 100% load up to 2.4:1

    THD
    4.00% maximum

    Dynamic Response
    ±4% for 100% step load change 0.5 ms recovery time

    Overload
    110% for 10 sec; 200% for 50 ms

    UPS Protection
    Circuit breaker

  • Temperature
    -20°C to +55°C (-4°F to +131°F)

    Humidity
    0% to 95% non-condensing

    Altitude
    Sea level to 10,000 ft

    Noise Level
    46 dBA at 5 ft

  • Input
    NEMA L5-30P plug with 6 ft cord

    Outputs
    NEMA Type 5-20R receptacles

    Cooling
    Low velocity forced air with user-selectable direction of airflow and user-replaceable filters

  • Standard Features
    Power factor corrected input, Fully regenerative, True on-line continuous power, Low distortion sine wave output, Designed for non-linear loads, Extended brownout protection, EIA/RS232 data interface

  • Visual Indicators
    Battery level, Load level, Bypass on, Battery on, AC Sense, AC OK

    Switches / Control Panel
    System power, Cold start, Battery test

    Audible Alarms
    Over current, Over/under voltage, Inverter, Fans, Temperatures, Bypass, Battery on

    Intelligent Computer Interfaces
    USB 2.0 and RS232 serial data interface

    Contact Closures
    DB-9, Open collector

  • Isolation
    Configurable 1U rack-mounted single phase toroidal transformer. Unit supports 115, 230 and 440 V in from ship.

    SNMP Interface
    Allows full control and monitoring interface over network connection. Compatible with HP Openview™, IBM Netview™, CA Unicenter TNG™, and other major software offerings.

    External Battery Pack
    Cyclon (DT), VRLA (NPX), Lithium LiFePO4 (K2)

    Display
    4x20 backlit LCD

    Miscellaneous
    Fast charger, Conformal coating, RE 101 shielding, Slide rails, Dry contact signal port
