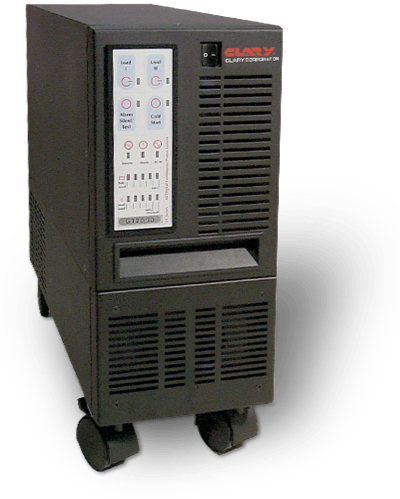

GT Series

The global Uninterruptible Power System or GT Series, features Clary’s on-line double conversion technology, and is power factor corrected for a wide range of voltage inputs.

Globally Deployable Power Protection

Computer terminals, workstations and communication equipment are typical electronic products that will benefit from Clary’s GT Series protection. All GT Series systems support a variety of interfaces including Ethernet, SNMP, embedded web server and RS232.

PRODUCT SPECIFICATIONS

  • Voltage
    Selectable ranges (nominal): 120/208, 120/220, 120/230, 120/240 VAC

    Frequency
    48 Hz to 62 Hz (nominal)

  • Voltage
    120 VAC ±3% (standard), 230 VAC (with optional transformer)

    Frequency
    50 Hz or 60 Hz, Software selectable to sync with input utility or run at crystal controlled 50/60 Hz ±1 Hz

    Crest Factor Ratio
    50% load up to 4.8:1, 75% load up to 3.2:1, 100% load up to 2.4:1

    THD
    3.00% maximum (linear), 5.00% maximum (non-linear)

    Dynamic Response
    ±4% for 100% step load change 0.5 ms recovery time

    Overload
    110% for 10 sec; 200% for 50 ms

    UPS Protection
    Input and output short circuit, Input and output overload, Excessive battery discharge

  • Temperature
    0°C to +40°C (+32°F to +104°F)

    Humidity
    0% to 95% non-condensing

    Altitude
    Sea level to 10,000 ft

    Noise Level
    39 dBA to 42 dBA at 5 ft

  • Input
    IEC on unit with 6 ft - NEMA 5-15P (1250 - 1500 VA connectors), IEC on unit with 6 ft - NEMA 5-20P (2000 - 2400 VA connectors)

    Outputs
    5-15R receptacles

    Cooling
    Low velocity, Forced air

  • Standard Features
    Power factor corrected input, Fully regenerative, True on-line continuous power, Low distortion sine wave output, Designed for non-linear loads, Extended brownout protection, Inverter powers load continuously, Continuous operation on -25% to +12% utility without draining batteries, Automatic bypass, AC output (2 channel load control), Rear mounted ground stud

    Certifications
    FCC Class A, IEEE 587/ANSI C62.4, CUL, UL 1778, CE

    Typical Recharge Time
    (to 85% Capacity @ 100% Load)
    8 hrs (more time required with extended battery option)

  • Visual Indicators
    Battery level, Load level, AC in, Inverter on, Summary alarm, Alarm silence, Load on

    Switches / Control Panel
    System power, Cold start, Load I, Load II, Test, Alarm silence

    Audible Alarms
    Utility interrupt, Inverter failure, Overload, Low battery, Self test

    Intelligent Computer Interfaces
    RS232 data interface (DB-9), Full interactive remote computer monitoring and control of most features including load control (requires optional monitoring software)

    Contact Closures
    DB-9, Open collector

  • SNMP Interface
    Allows full control and monitoring interface over network connection. Compatible with HP Openview™, IBM Netview™, CA Unicenter TNG™, and other major software offerings.
